TIBBERTON -SHROPSHIRE
6kw PV array & 5kw hybrid inverter & 5kw dc battery storage

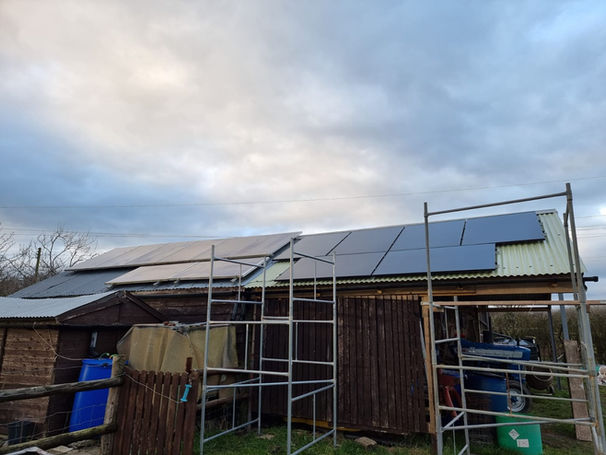

Completed project in Tibberton - designed from 6kw PV array & 5kw hybrid inverter & 5kw dc battery storage,
all 15 panels (TRINA 400W) fitted with optimizers to guarantee every panel will work independently
Optimizers allow us to monitor performance and generation of each panel individually , Huawei battery module are stackable in 5kw banks which will allow any future expansion for client . We have used CT clamp around main meter tails to monitor import/ export of power, under one app we can see live data
* pv performance-generation
** battery storage capacity and it's current status (charging or discharging )
***power consumption from grid / power exported to grid
**** house consumption
property will be also benefit from FREE hot water due to MYENERGI HARVI &EDDI connected directly to immersion heater, EDDI will harvest all excess generated from solar panels and use it to heat up hot water
IF YOU WOULD WISH TO SPEAK WITH CLIENT , PLEASE CONTACT PHIL - 07985766020

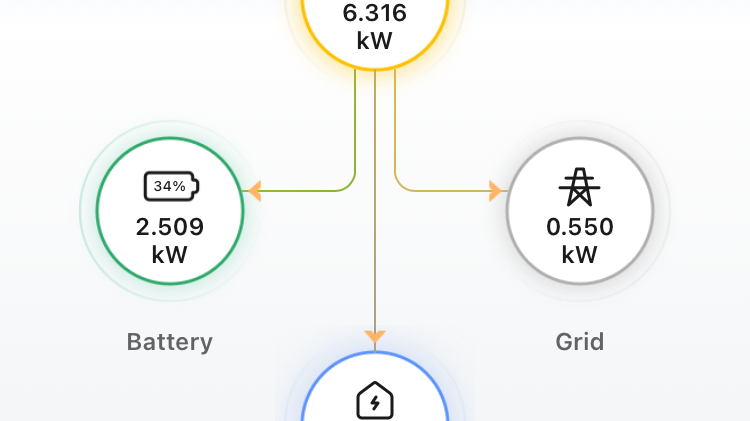

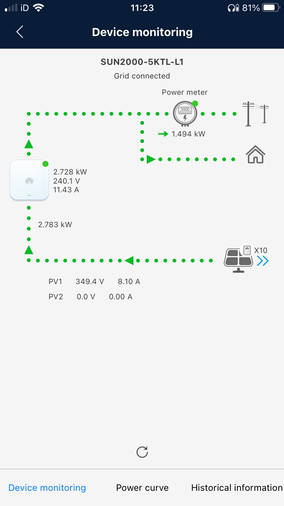

 live data |  Huawei 450w optimizers |  preparation |
|---|---|---|

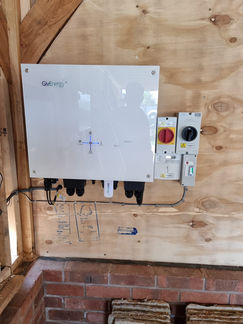

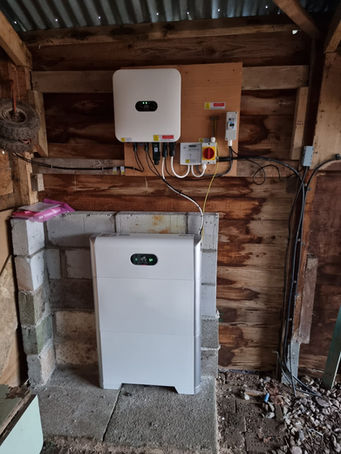

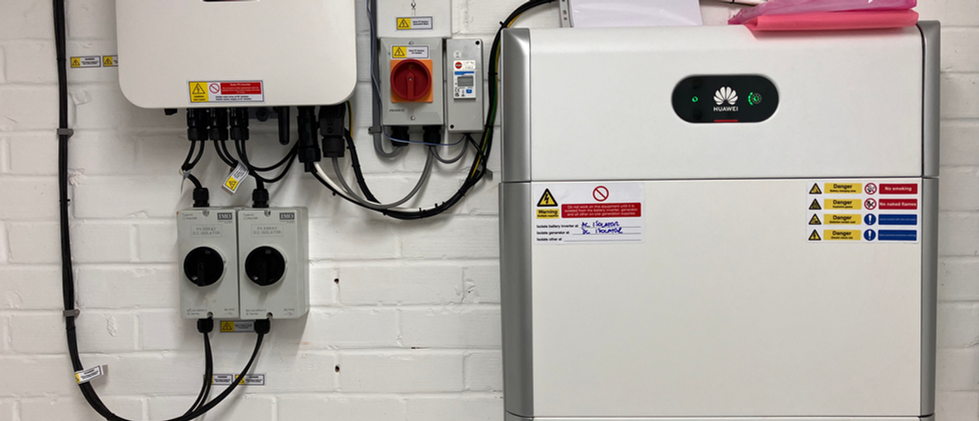

 finish product |  finished product |  huawei -6kw inverter & 5kw battery |
 software updates and commissioning |  generation in progress |
NEWPORT - SHROPSHIRE
4.8kw PV array with 3.68kw inverter & 15kw battery storage DB1 replacement & DB2 installation

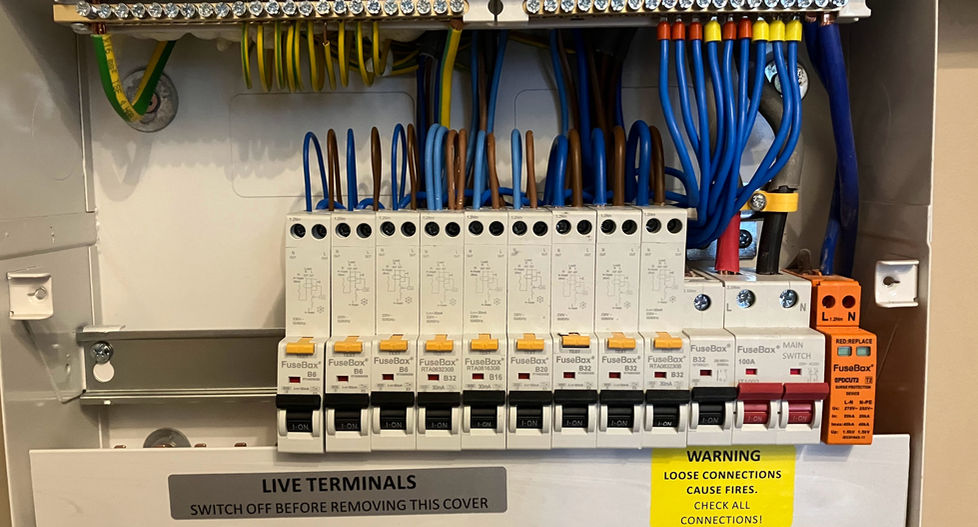

Another complex project completed in newport, we started with DB upgrade with full RCBO board and surge protection device to provide maximum protection
we fitted 12x TRINA 400w panels with huawei optimisers

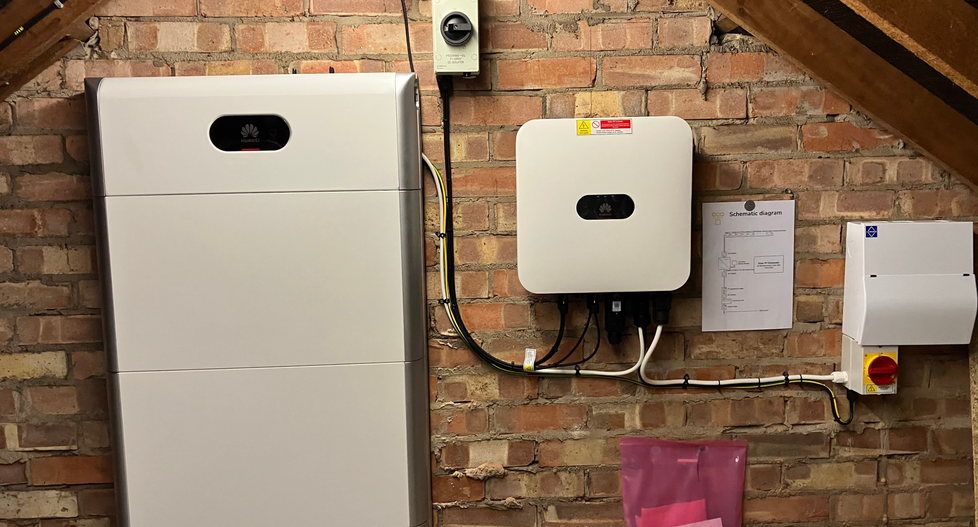

DB2 , 15kw battery and inverter is located in loft area ,
Huawei smart meter was installed directly into DB 2 to provide best possible finish ,
All data about generation , consumption and battery are available on App
property will be also benefit from FREE hot water due to MYENERGI HARVI &EDDI connected directly to immersion heater, EDDI will harvest all excess generated from solar panels and use it to heat up hot water
IF YOU WOULD WISH TO SPEAK WITH CLIENT , PLEASE CONTACT GEORGE - 07761250078
Bridgnorth - Shropshire
4.2kw PV array

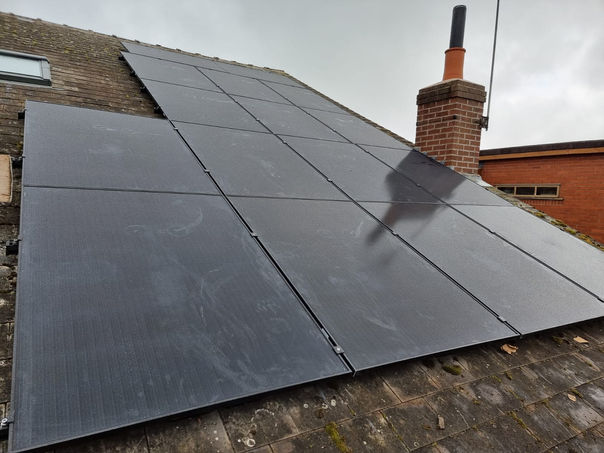

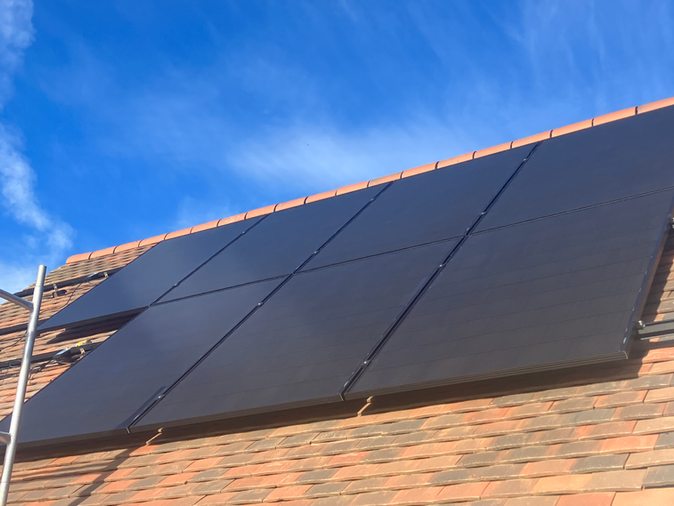

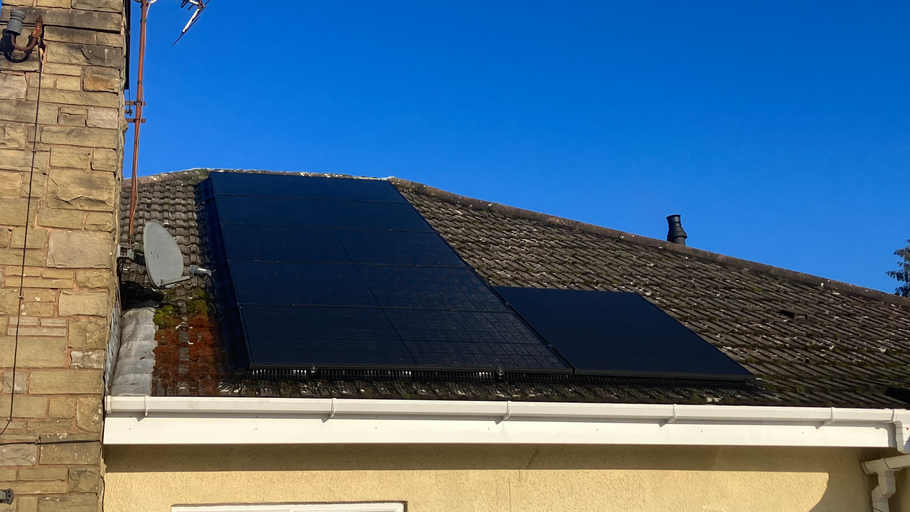

Our latest install with pure black mono panels 10x 415w & 450w optimisers with 5kw inverter
this system will be expanded shortly with another 7 panels and 10kw battery storage & EDDI hot water diverter
we used back railings and black fitting accessories to provide best visual finish
Wellington - Shropshire

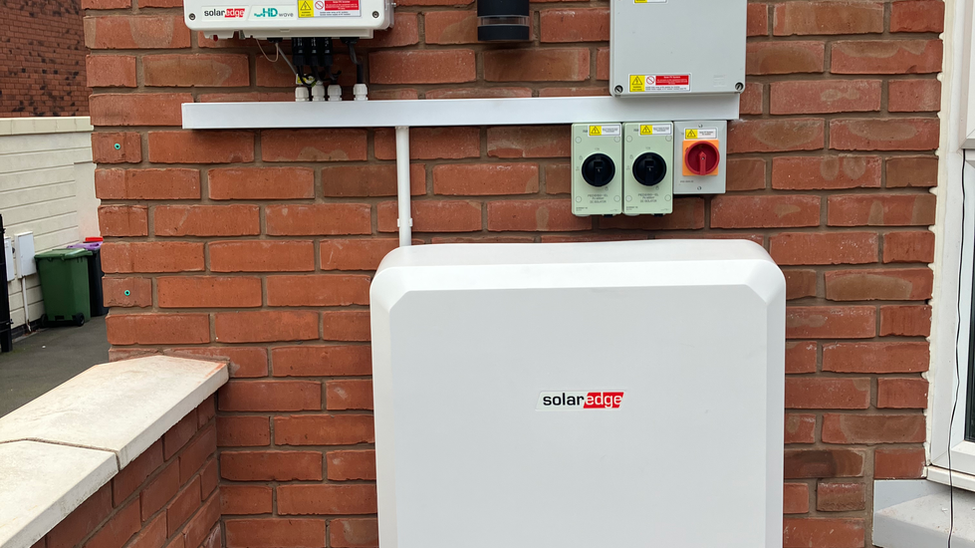

8.3kw PV array & SOLAR EDGE 8KW inverter & SOLAR EDGE 10KW battery storage
We would like to share with you our latest project completed in telford,
we installed 20 x 415w all back panels with solar edge optimisers so we can track performance of all panels,

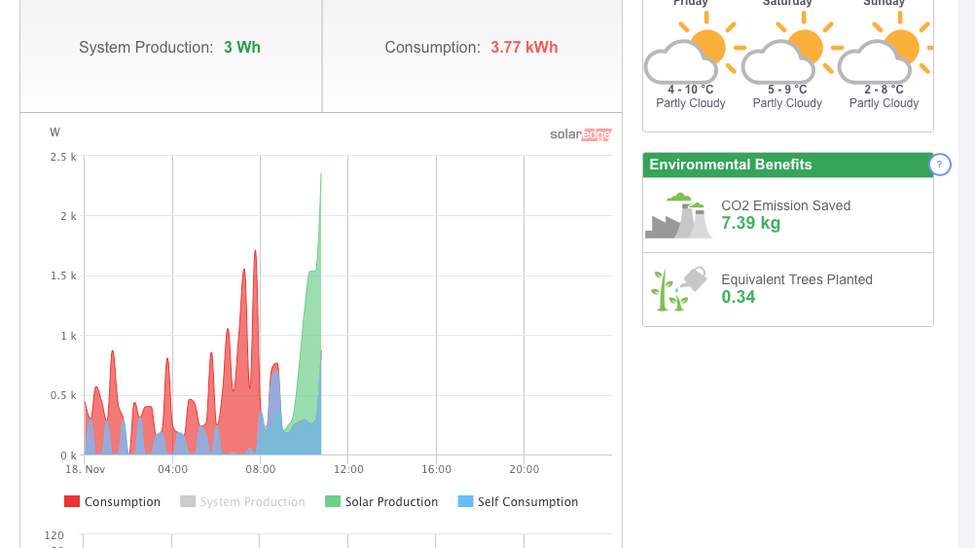

it is split across 2 roofs ( 7 and 13 ) ,solar edge offering great system overall with excellent monitoring platform
Dawley -Telford

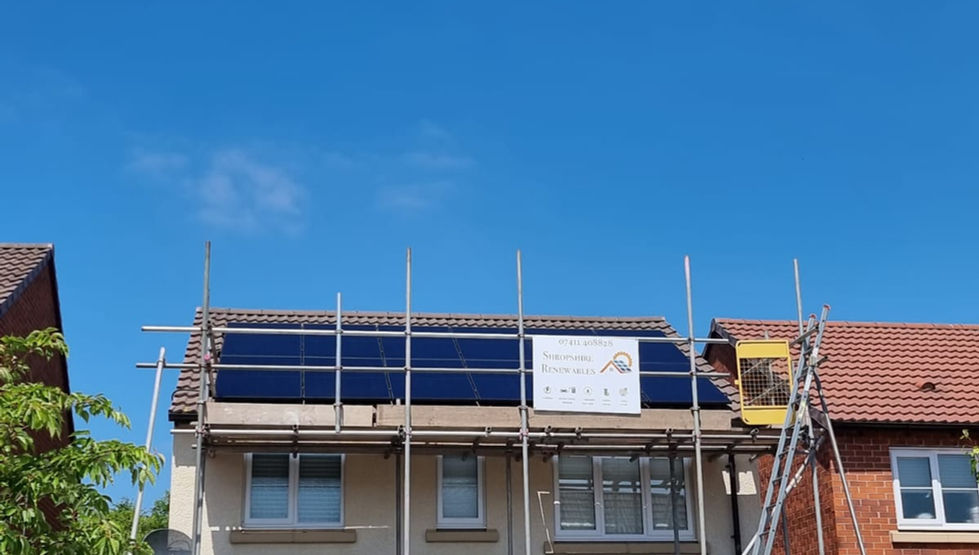

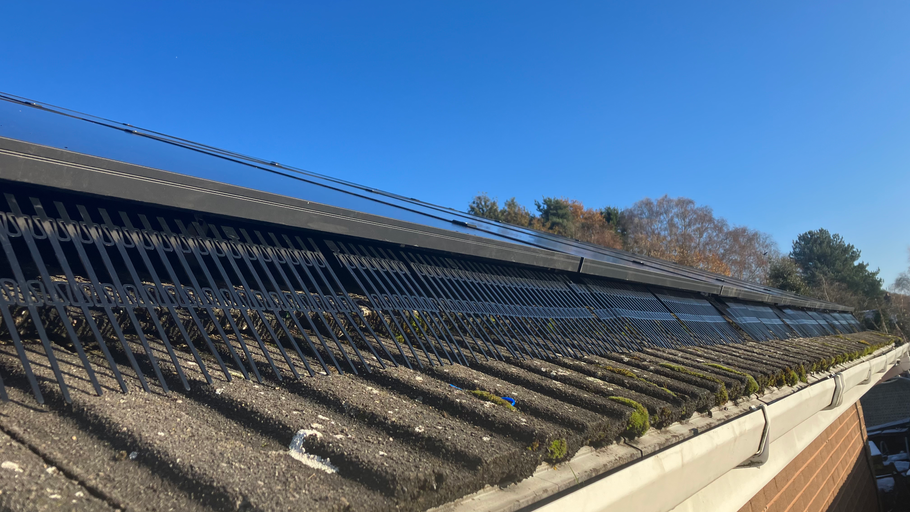

7kw solar pv system with bird blocker & 6kw SolarEdge hybrid inverter & 10kw SolarEdge battery storage
Another Solar edge system completed in telford , designed from 18x 390w all black Trina panels and Solar edge inverter & battery , panels are protected by bird-blocker , also every panel is optimised by solar edge optimisers P505 to guarantee every panel will work individually , it also allow us to monitor performance of each panel individually
Telford - Shropshire
Another completed Job in Telford, we have fitted 16x 400w Perlight all black panels, with HUAWEI 5KW hybrid inverter and 10kw battery

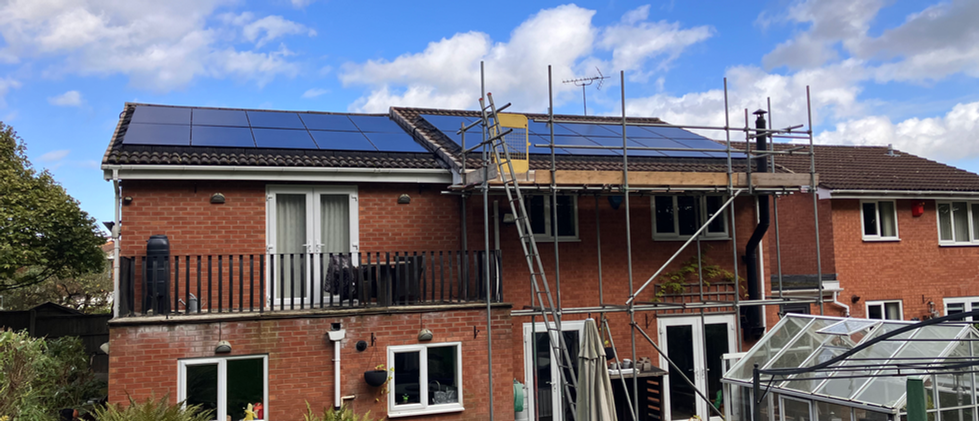

panels were split across 2 roofs due to upcoming extension
inverter and battery is located in loft
