Complete projects
 6 |  7 |
|---|---|
2 |  4 |
5 | 3 |
 1 |
TIBBERTON -SHROPSHIRE
6kw PV array & 5kw hybrid inverter & 5kw dc battery storage

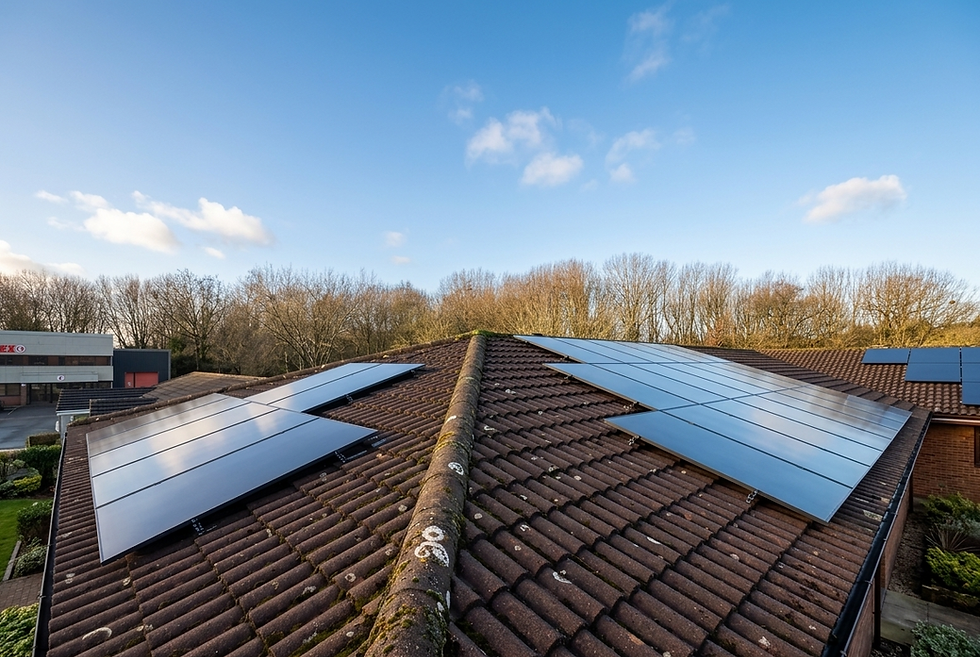

Completed project in Tibberton - designed from 6kw PV array & 5kw hybrid inverter & 5kw dc battery storage, all 15 panels (TRINA 400W) fitted with optimizers to guarantee every panel will work independently
Optimizers allow us to monitor performance and generation of each panel individually , Huawei battery module are stackable in 5kw banks which will allow any future expansion for client .
We have used CT clamp around main meter tails to monitor import/ export of power, under one app we can see live data
* pv performance-generation
** battery storage capacity and it's current status (charging or discharging )
***power consumption from grid / power exported to grid
**** house consumption
property will be also benefit from FREE hot water due to MYENERGI HARVI &EDDI connected directly to immersion heater, EDDI will harvest all excess generated from solar panels and use it to heat up hot water
NEWPORT - SHROPSHIRE
4.8kw PV array with 3.68kw inverter & 15kw battery storage DB1 replacement & DB2 installation
Another complex project completed in newport, we started with DB upgrade with full RCBO board and surge protection device to provide maximum protection
we fitted 12x TRINA 400w panels with huawei optimisers

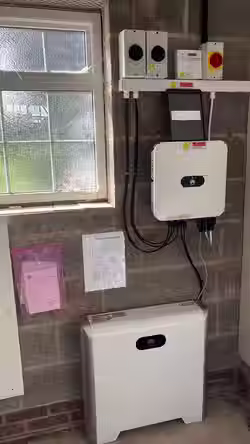

DB2 , 15kw battery and inverter is located in loft area ,
Huawei smart meter was installed directly into DB 2 to provide best possible finish ,
All data about generation , consumption and battery are available on App
property will be also benefit from FREE hot water due to MYENERGI HARVI &EDDI connected directly to immersion heater, EDDI will harvest all excess generated from solar panels and use it to heat up hot water
​
IF YOU WOULD WISH TO SPEAK WITH CLIENT , PLEASE CONTACT GEORGE - 07761250078
